Stormwater Networks
The main Devotech iDAS tools for stormwater networks design and analysis are the following:
-
Extensive pipe catalogue
-
Custom pipe and structure properties, e.g. design flow and velocity, maximum flow and velocity, curb inlet type, inflow, lateral inflow etc.
-
Convert multiple lines and polylines to pipe network
-
Swap multiple pipes or structures simultaneously
-
Create profile views (longsections) for the entire network automatically
-
Regrade the entire network automatically
-
Grade multiple pipes at once (forward or backwards)
-
Run-off calculation based on Rational and Epaswmm methods
-
Stormwater network analysis (steady flow, kinematic wave, dynamic wave)
-
Pipe sizing
-
Attenuation ponds, channels, weirs, orifices and culverts analysis
-
Plan production which creates plan and profile sheets for all the branches simultaneously
-
Pipe and structure quantities
-
Excavation quantities according to SABS 1200
Stormwater Networks Overview Videos
Overview-Storm Water Network-Part 1
Overview-Storm Water Network-Part 1
Overview-Storm Water Network-Part 2
Sewer Networks
The main Devotech iDAS tools for sewer networks design and analysis are the following:
-
Extensive pipe catalogue
-
Custom pipe and structure properties like design flow and velocity, maximum flow and velocity, inflow, lateral inflow etc.
-
Convert multiple lines and polylines to pipe network
-
Swap multiple pipes or structures simultaneously
-
Create profile views (longsections) for the entire network automatically
-
Regrade the entire network automatically
-
Grade multiple pipes at once (forward or backwards)
-
Create sewer house connection automatically
-
Project house connections to profile views (longsections)
-
Calculate inflow from house connections
-
Sewer network analysis (steady flow, kinematic wave, dynamic wave)
-
Pipe sizing
-
Plan production which creates plan and profile sheets for all the branches at the same time
-
Pipe and structure quantities
-
Excavation quantities according to SABS 1200
Sewer Networks Overview Videos
Overview-Sewer Network-Part 1
Overview-Sewer Network-Part 1
Overview-Sewer Network-Part 2
Water Reticulation Networks
The main Devotech iDAS tools for water reticulation design and analysis are the following:
-
Custom pipe and structure properties like design flow, velocity, inflow, lateral inflow, pressure etc.
-
Convert multiple lines and polylines to pipe network
-
Add house connections
-
Swap multiple pipes or structures simultaneously
-
Adjust the invert or cover for the entire network
-
Water reticulation analysis
-
Valves
-
Pressure map
-
Pipe and structure quantities
-
Excavation quantities according to SABS 1200
-
Rename pipes and structures

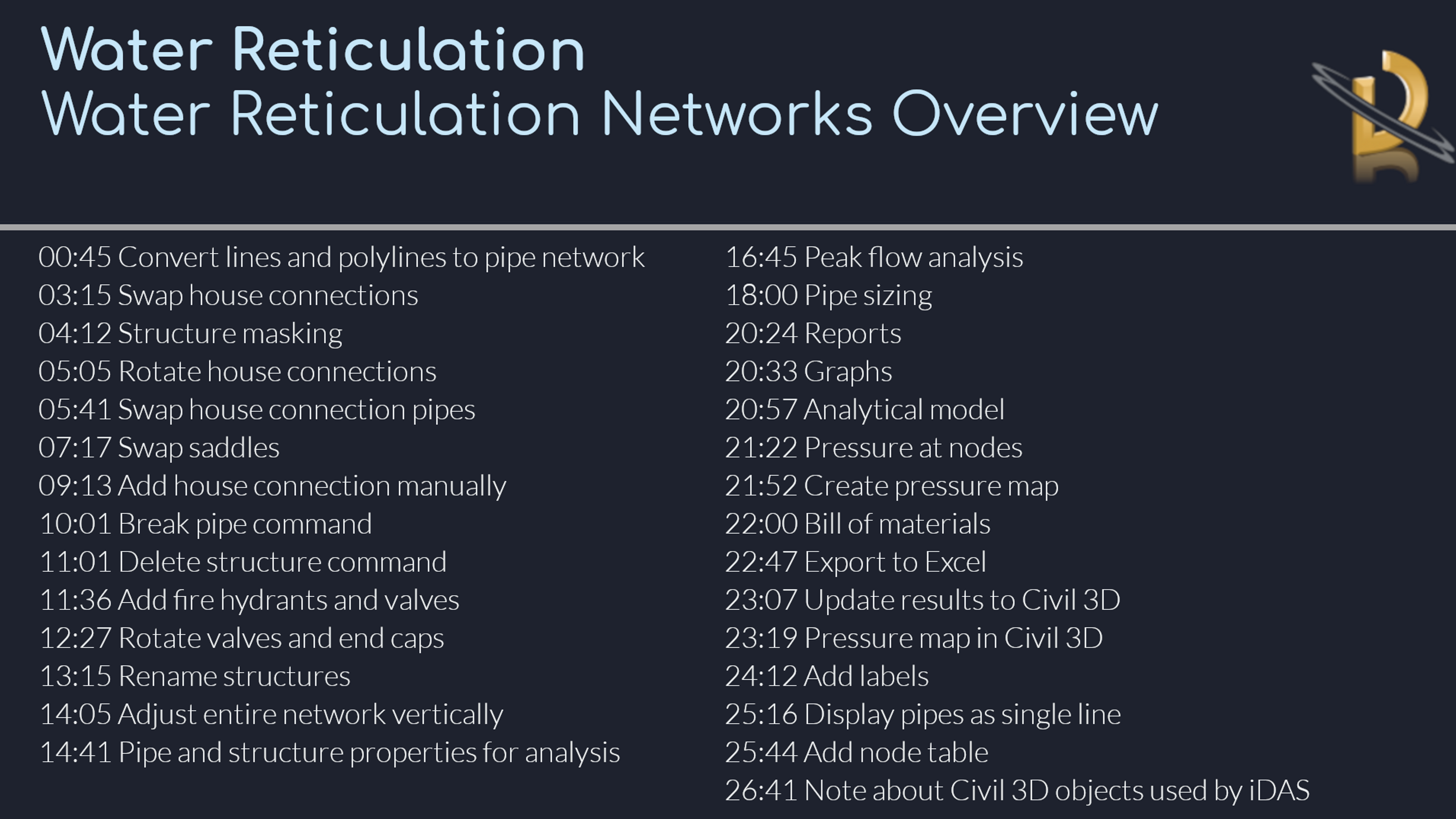

Water Reticulation Networks Overview Videos
Overview-Water Reticulation Network-Part 1
Overview-Water Reticulation Network-Part 1
Overview-Water Reticulation Network-Part 2
Bulk Water Networks
The main Devotech iDAS tools for bulk water pipeline design and analysis are the following:
-
Custom pipe and structure properties like design flow, velocity, inflow, lateral inflow, pressure, horizontal, vertical and combined angle etc.
-
Convert polyline to pipe network and design pipe network vertically
-
Create profile views (longsections) for the entire network automatically
-
Swap multiple pipes or structures simultaneously
-
Insert structures in profile view (suitable for air valves and scour valves)
-
Adjust the invert or cover for the entire network
-
Grade multiple pipes at once (forward or backwards)
-
Bulk water pipeline analysis
-
System curve analysis for pumps
-
Calculate horizontal, vertical and combined angles and assign allocated bends
-
Plan production which creates plan and profile sheets for the entire network
-
Pipe and structure quantities
-
Excavation quantities according to SABS 1200
Bulk Water Network Overview Videos
Overview-Bulk Water Pipeline-Part 1
Overview-Bulk Water Pipeline-Part 1
Overview-Bulk Water Pipeline-Part 2
